Residential documentation / Actual drawing example

Granny-flat wet-area and slab CAD drawings.

Six cropped extracts connect the wet-area layout to slab documentation, plumbing penetrations, edge details and bathroom, laundry and kitchen elevations.

Discuss a similar drawing project

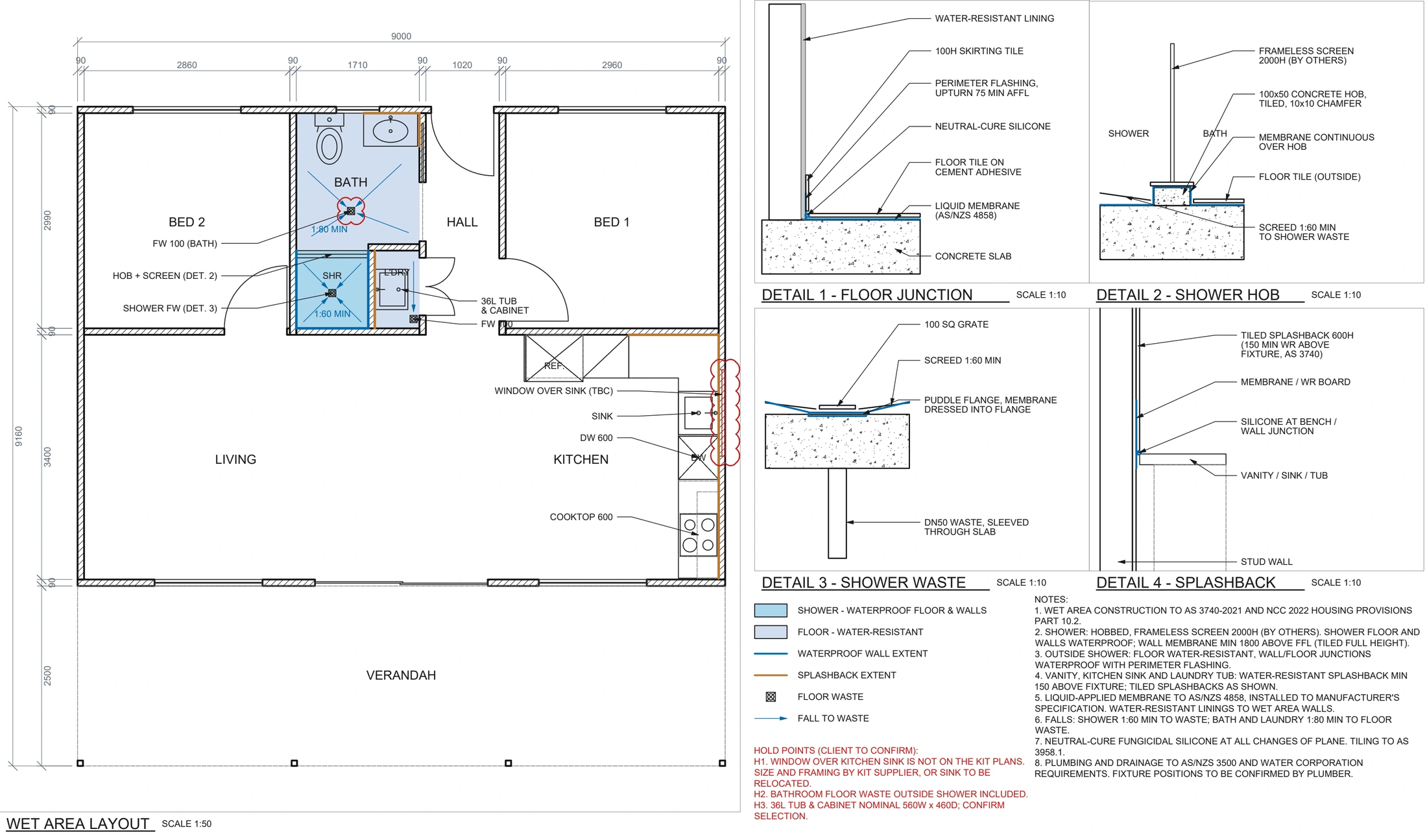

Anonymised granny-flat wet-area layout with junction and shower detail drawings — Wet-area layout and detail extract. Client details, the site address and title blocks have been excluded.

Drawing scope

Coordinating layouts, details and elevations.

The drawing set relates bathroom, shower, laundry and kitchen arrangements to the wider residential layout. Coloured annotations identify wet-area and tiled extents, while section details illustrate floor junctions, shower construction, drainage and splashbacks.

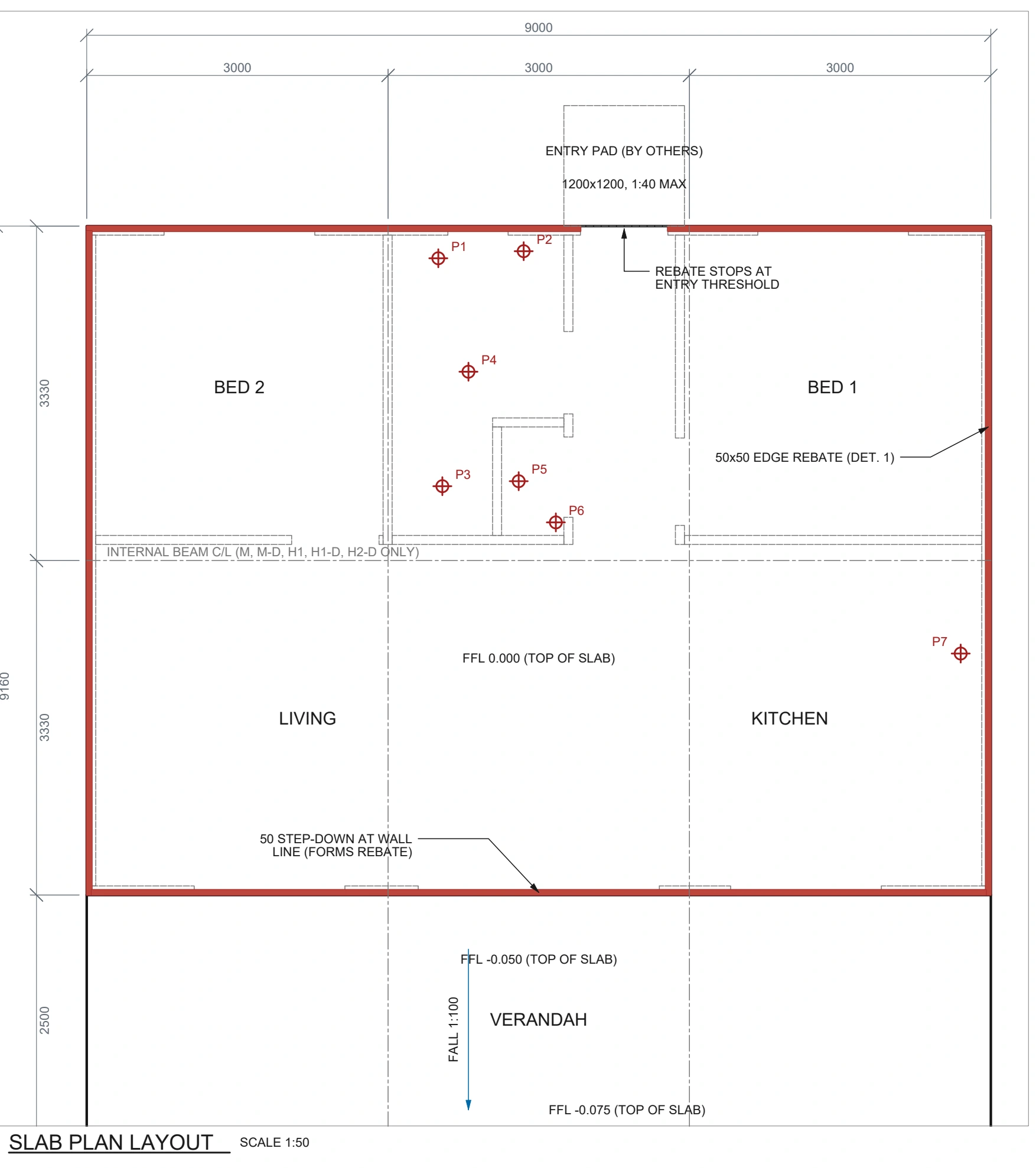

The slab plan locates levels, rebates and penetration references. A separate schedule connects the penetration tags to fixture information and set-out coordinates. The bathroom, laundry and kitchen extracts show the relationship between plan positions and internal elevations.

What the example demonstrates

Wet-area layout and local construction-detail documentation.

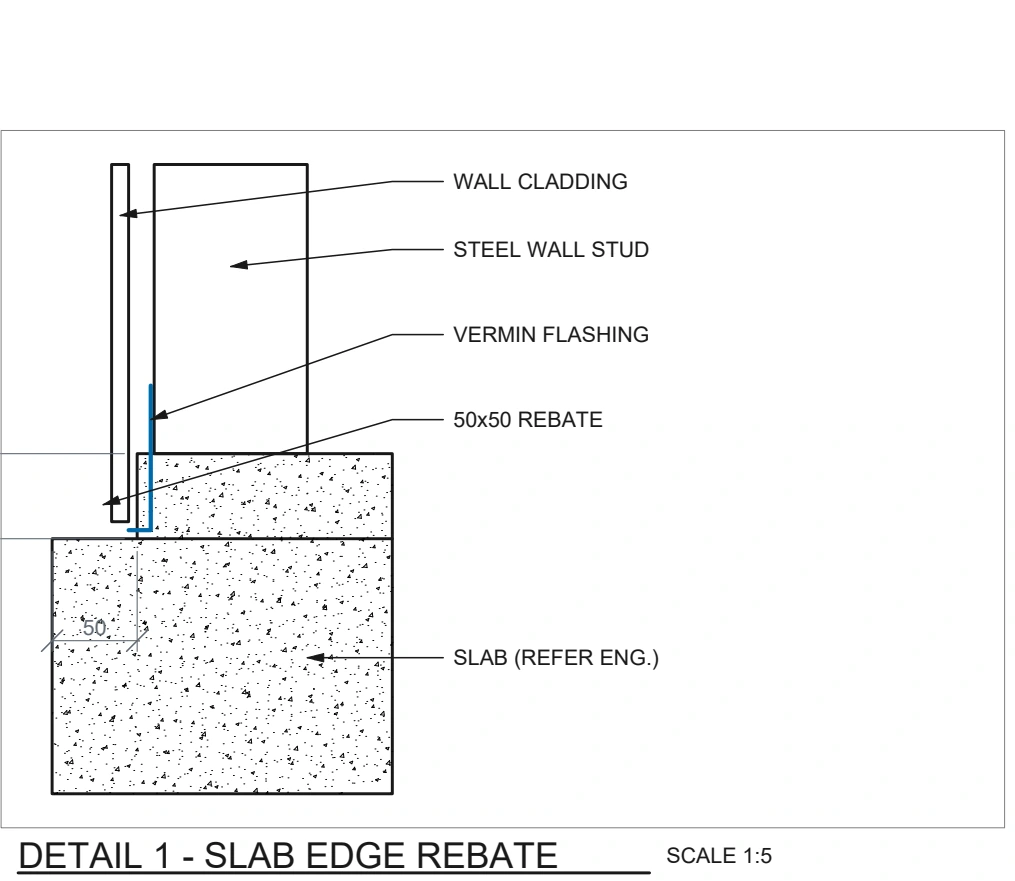

Slab-plan levels, edge rebates and penetration references.

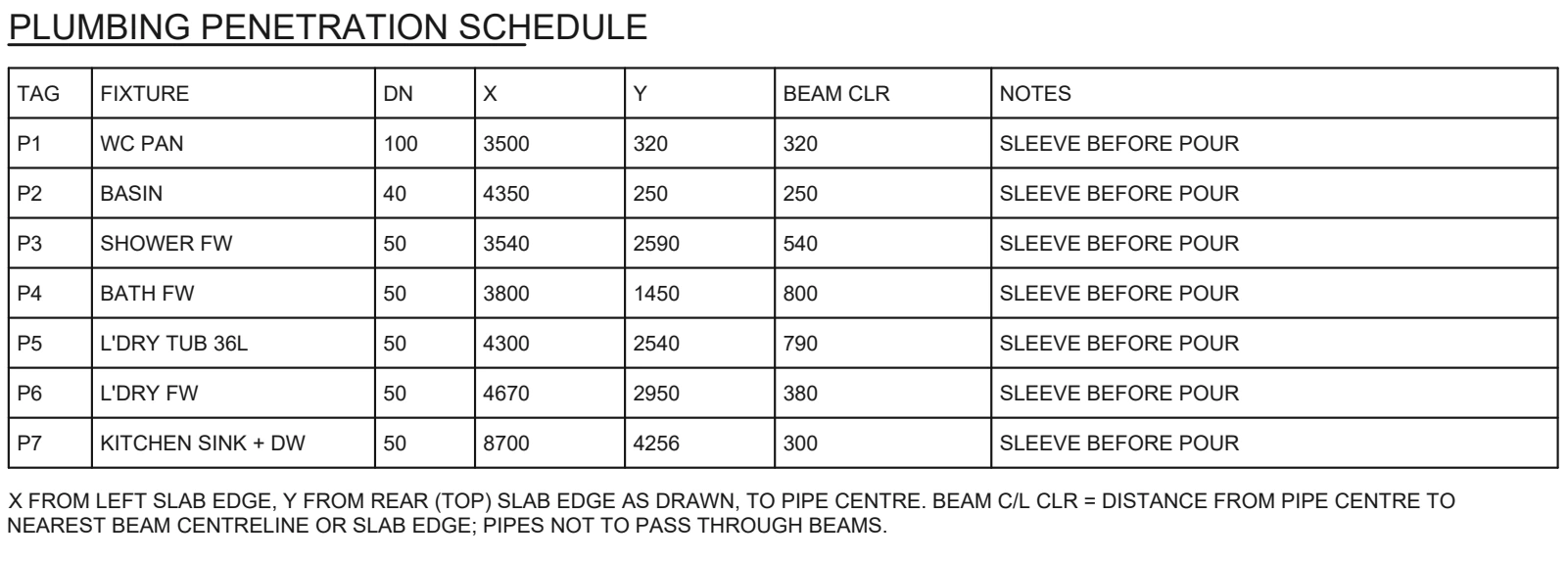

Plumbing penetration schedule and tagged fixtures.

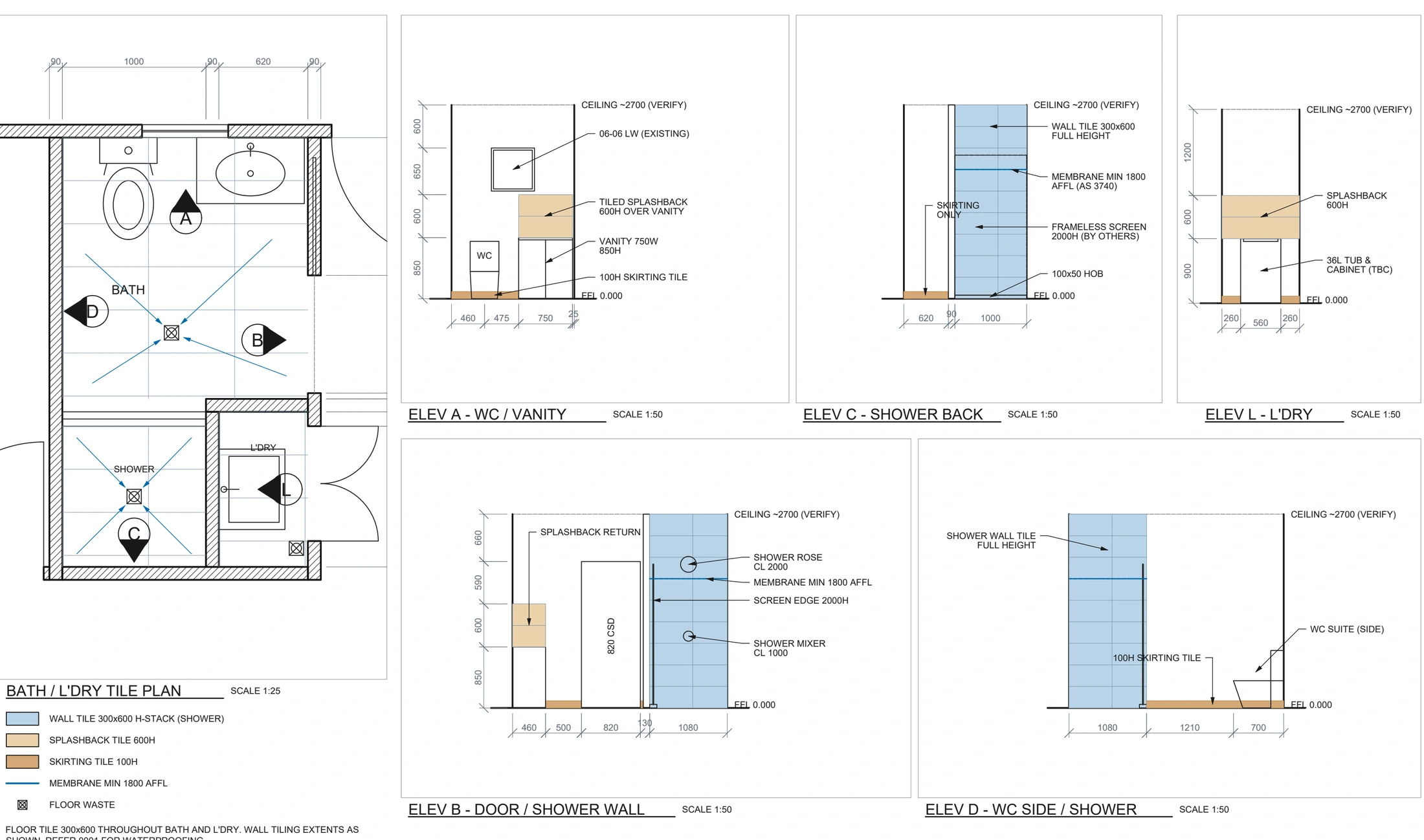

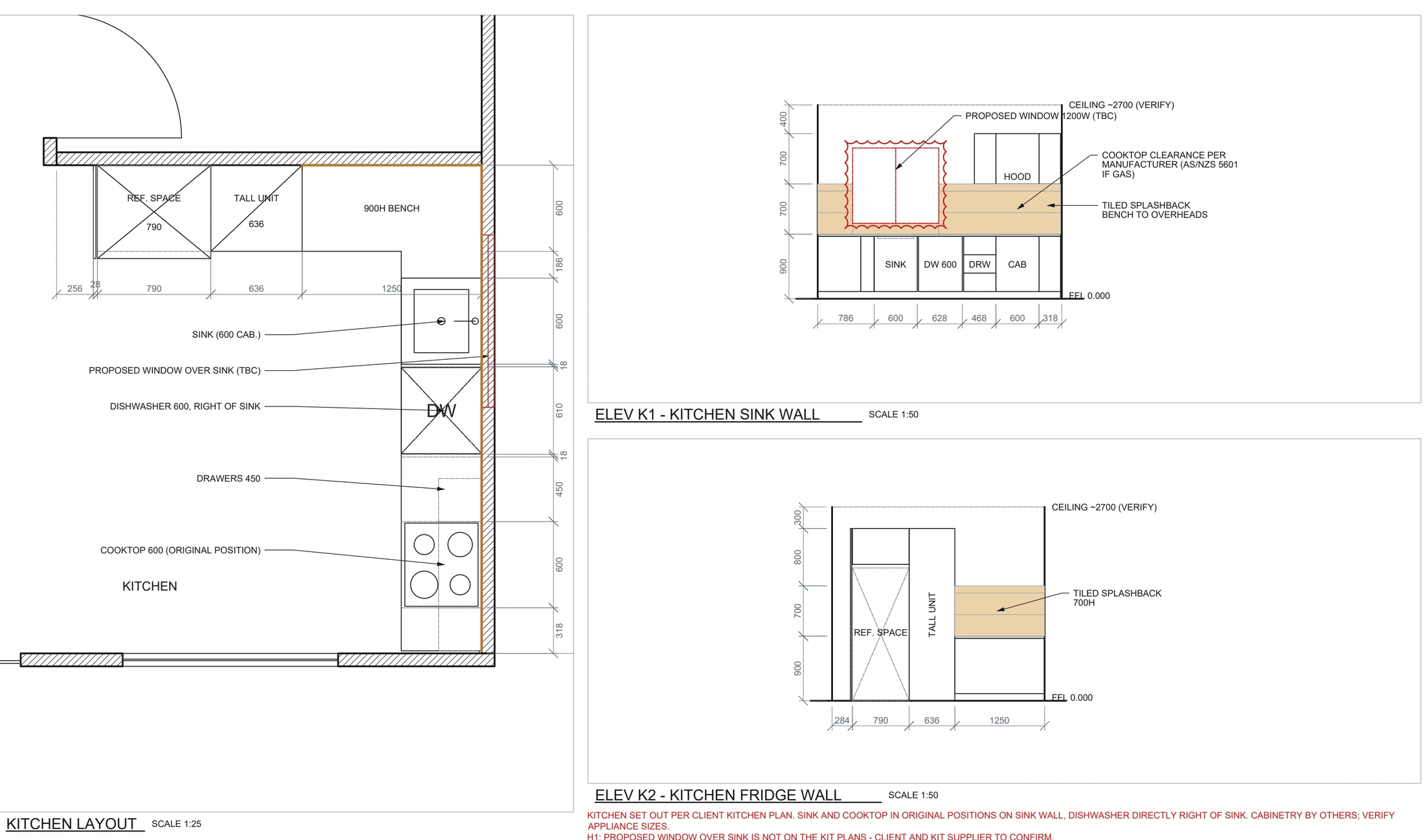

Bathroom, laundry and kitchen plans linked to elevations.

This example presents CAD documentation from supplied project references. It does not establish engineering approval, waterproofing certification or completed construction.

Client-identifying information has been excluded from these portfolio extracts. The original PDFs are kept outside the public website. Drawing notes and dimensions describe this example only.

Actual drawing extract
