Metalwork / Actual drawing examples

Gate visualisation and fabrication shop drawings.

A sliding-gate front render and two pedestrian-gate drawing extracts show how visual references and fabrication documentation communicate different parts of a gate package.

Discuss a similar drawing project

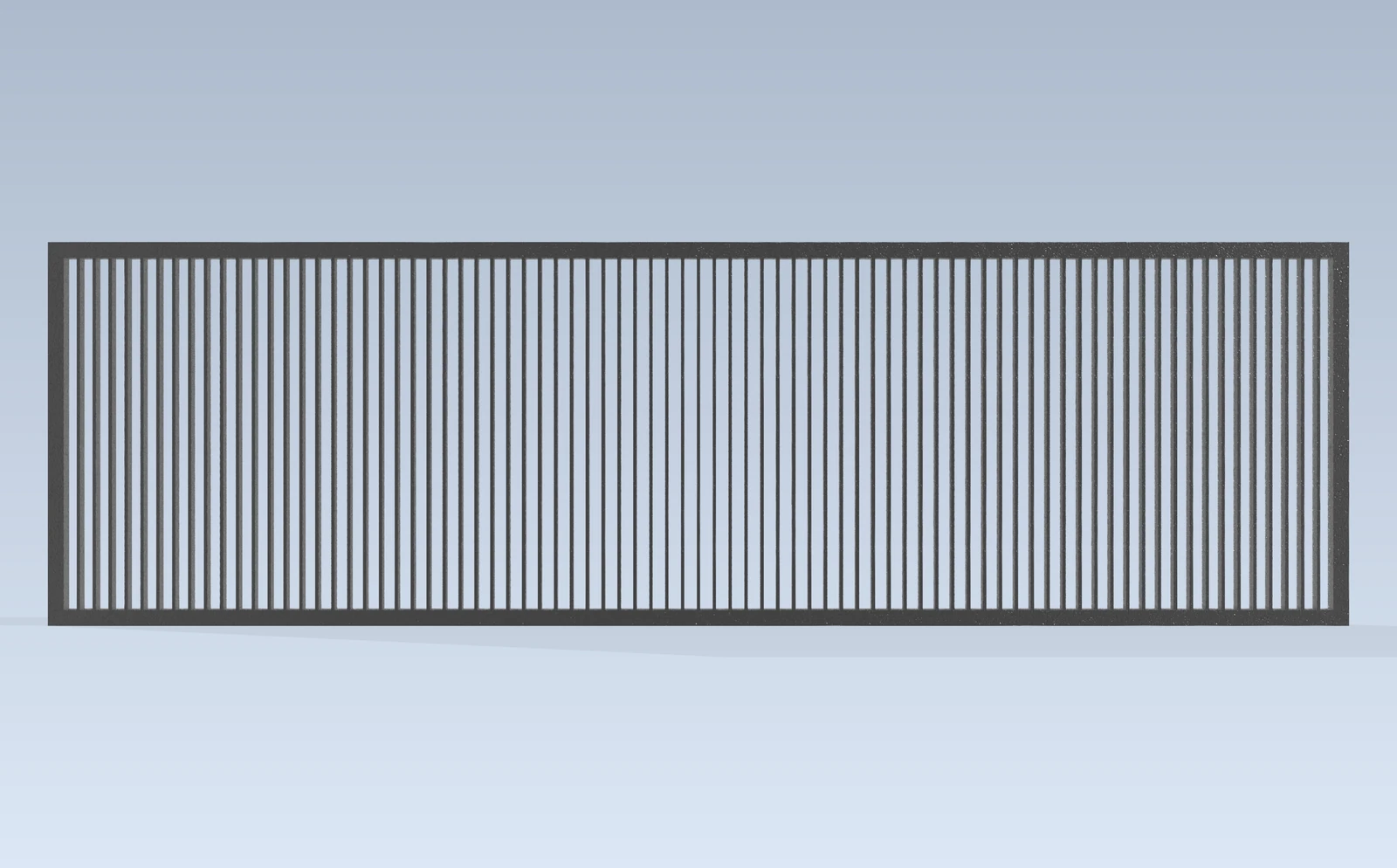

Supplied front-view CAD render of a sliding gate with vertical infill — Sliding-gate front visualisation supplied with the project references. The pedestrian-gate drawings below document a separate gate component.

Drawing scope

From visual arrangement to fabrication detail.

The front render presents the proportions and vertical infill arrangement of a sliding gate. It is a CAD visualisation, rather than a photograph of an installed gate.

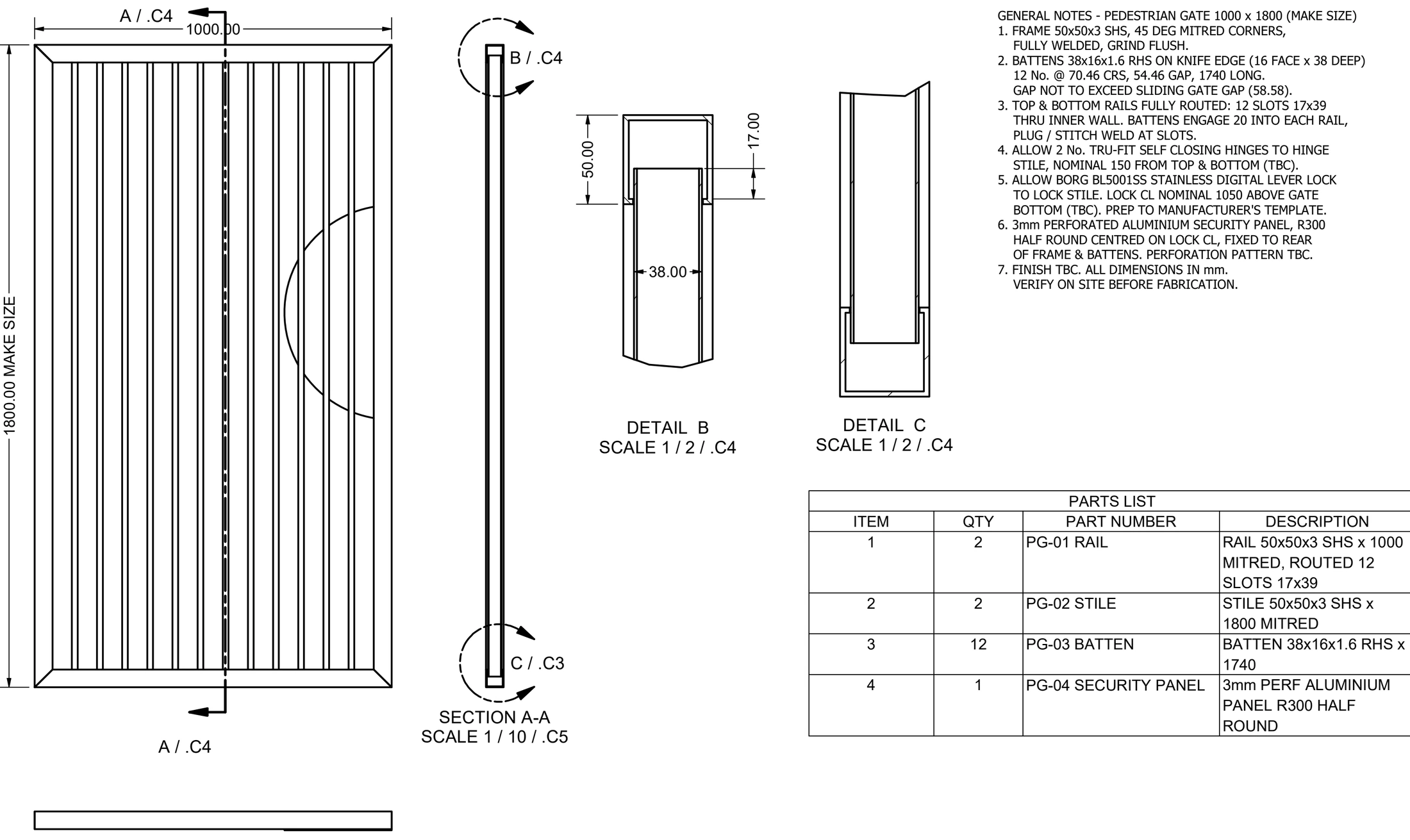

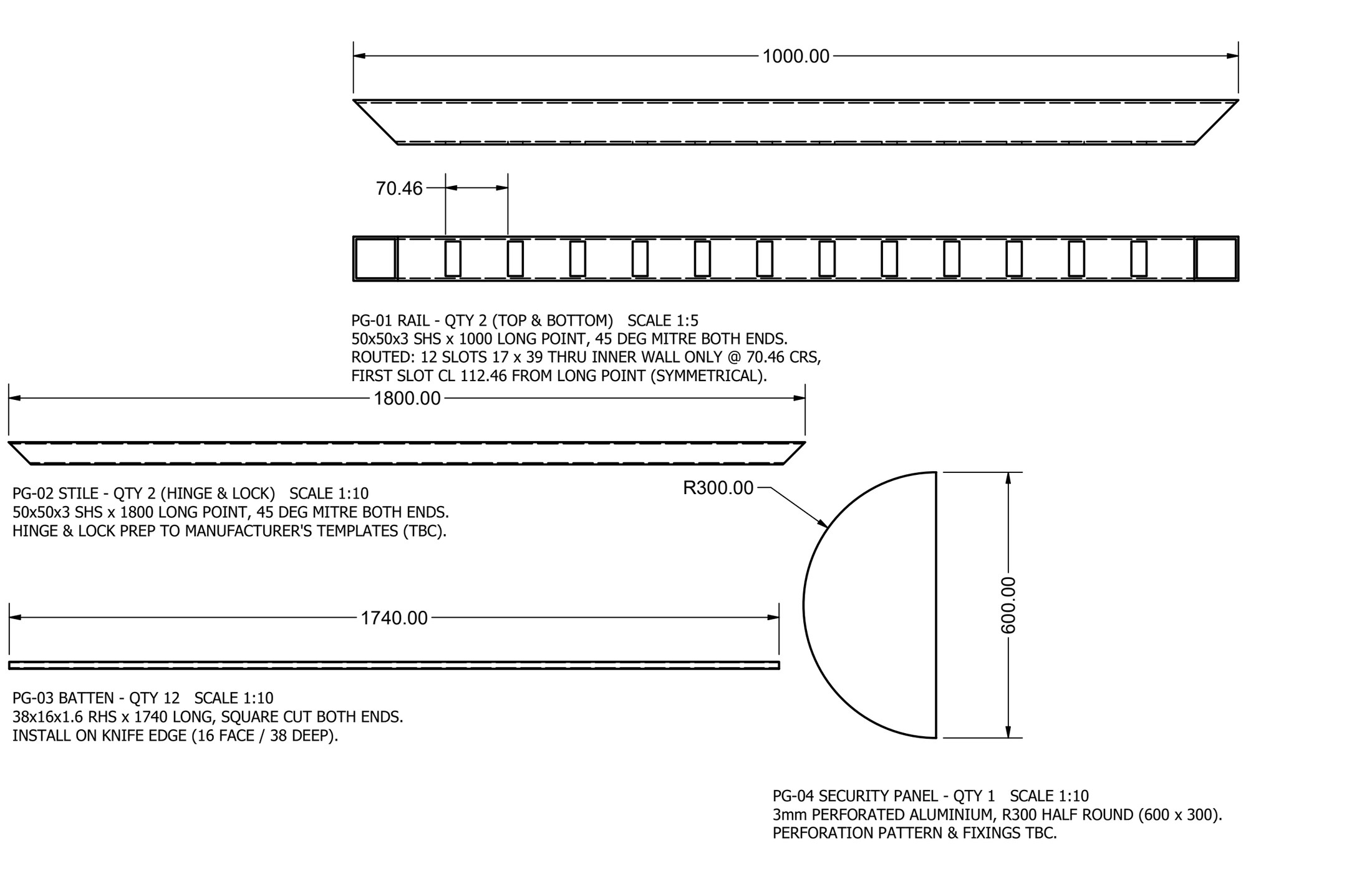

The drawing extracts document a separate pedestrian gate, with an overall elevation, section views, local hardware details and a parts list. The component sheet develops the rails, stiles, battens and security panel with individual dimensions and fabrication notes.

What the example demonstrates

Overall gate geometry and section references.
Local details for gate hardware and member relationships.
Component identification connected to a parts list.
Rail, stile, batten and panel documentation.

Client-identifying information has been excluded from these portfolio extracts. The original PDFs are kept outside the public website. Drawing notes and dimensions describe this example only.

Actual drawing extract
